Turbocharger Calibrator

home > Products > Turbocharger Calibrator

* 터보차저 캘리브레이터란?

- 중장비 및 상용트럭, 상용 선박엔진에 적용되는 터보디젤엔진의 폭발적인 애프터마켓 수요대응을 위한 전자제어식 과급시스템의 조립불량, 제어 오동작과 고장을 빠르고 효율적으로 정비하고 터보베인과 전자제어식 엑츄에이터의 구동을 동기화 할 수 있는 터보차저 캘리브레이션 토털 솔루션 시스템
- 엔진에 터보차저를 장착하여 테스트를 해야하는 번거로움 없이 터보차저의 배기측과 압축부 측의 유량, 압력, 온도 등의 성능 데이터를 수집하고 캘리브레이션 할 수 있어 예방정비를 통한 비용절감을 실현하고 터보디젤의 배기가스 저감에 핵심적 요소인 캘리브레이션을 CAN PROTOCOL에 의해 오토포지셔닝 할 수 있는 시스템

Turbocharger Calibrator provides total calibration solutions by enabling its users to be able to utilize CAN protocols required to control and accurately position turbo vane geometry in turbo mechanism when it comes to turbo remanufacturing process. By simulating turbocharging action using compressed air, users can acquire specific data from each turbochargers such as flow rate, temperature, and pressure on both exhaust and inlet side of turbocharger.

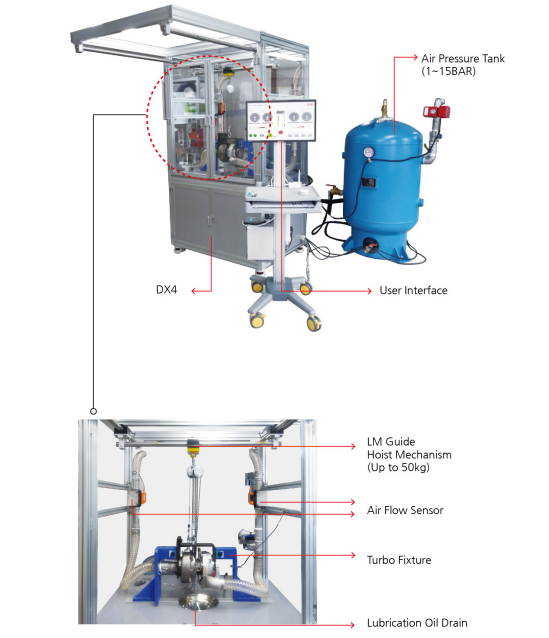

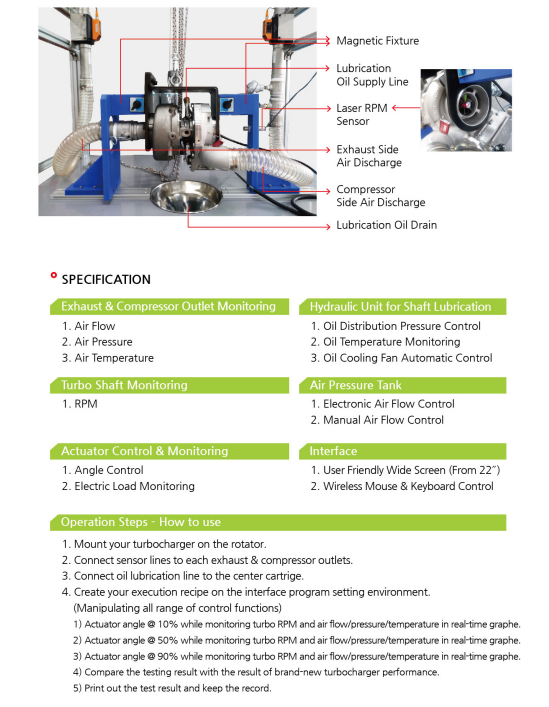

DX4 Turbocharger
DX4 Turbocharger
DX4 Turbocharger
DX4 Turbocharger

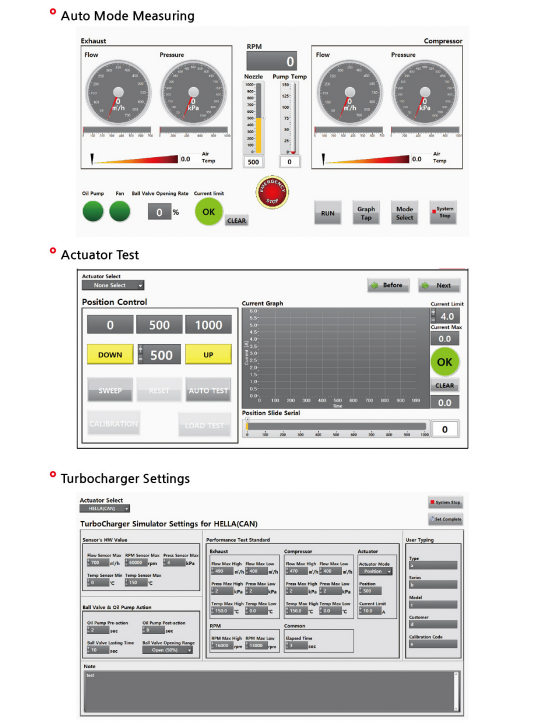

Real Time Data Monitoring Page
Real Time Data Monitoring Page
